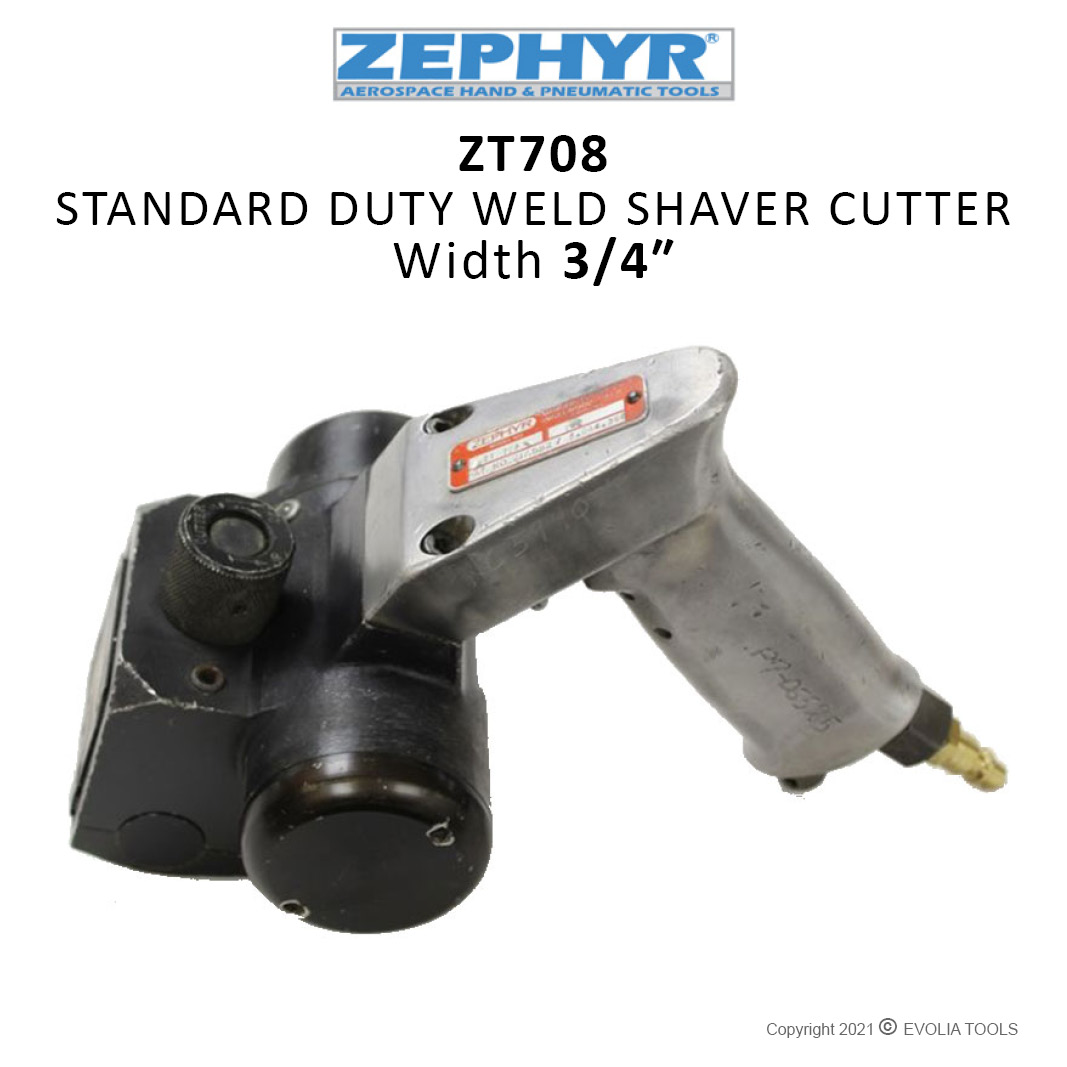

ZT708 STANDARD DUTY WELD SHAVER CUTTER WIDTH 3/4″

Back to results

ZT708 STANDARD DUTY WELD SHAVER CUTTER WIDTH 3/4″

From $8,950.46

Remove stainless steel or titanium weld beads with the ZT708.

This configuration is for cutter width 3/4″

Portable air-powered tools designed to shave weld beads to a pre-determined height-above, below, or flush to the surface. Each can solve special requirements such as burr removal, beveling, and working at angles or in close quarters;

No matter what your application, these Weld Shavers will perform with precision, giving you a smooth finished surface in less time than ever before.

SELECT 3/4″ Cutter Shaft & Roller Assembly (Required) *

CHOOSE HAND OUTRIGGER IF NEEDED

CHOOSE BEVEL ATTACHEMENT IFNEEDED

CHOOSE CUTTER *

ALL CUTTERS ARE CARBIDE, DIAMETER 1-1/2″

Categories: ,

Specifications

Capacity:
Aluminum- Ø1.25″ (31.75 mm)

Steel-Ø.75″ (19.05mm)

Titanium-Ø.75″ (19.05mm)

Stroke:
Minimum- .375″ (9.525mm)

Maximum- unlimited

RPM’s:
230, 350, 550, 750, 1000, 2100, 3200 and 4500 RPM

Feed Rates:
.001, .002, .003, .004, .005, .006, .007 and .008 IPR.

Air Motor Power: 1.75 HP

Operative Air Pressure: 90 – 120 PSI Air

Consumption: 53 S.C.F.M

Noise: 90 dB scale A
Vibration below 2.5 cm/sec2

Weight with single Gear Reduction: 7.8 lb.

ZEPHYR ZT708 WELD SHAVER
