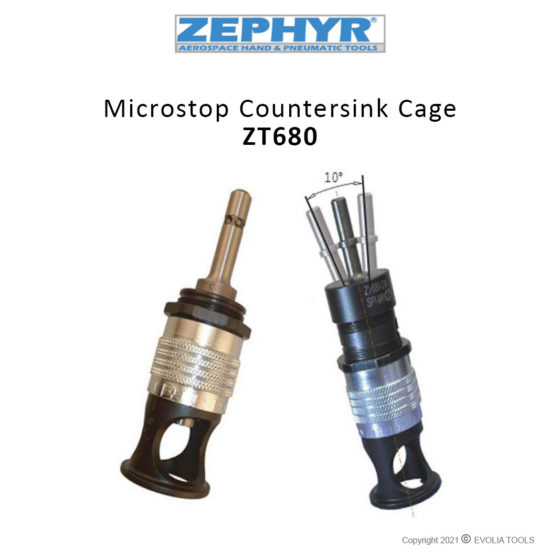

ZT680 Microstop Countersink Cage

Back to results

ZT680 Microstop Countersink Cage

From $185.16

ZEPHYR’s new ZT680 Series Microstop Cage has been designed for continuous operation at any speed up to 10,000 rpm in the most demanding applications. This makesthem well suited for all metallic, graphite and composite materials used in the airframe industry today. Quality standards have been held to insure the highest levels of accuracy and performance.

Available on backorder

Choose Shaft: *

Choose Footpiece Style: *

Chose Footplate Style: *

Choose Shaft Style: *

Features Include

  • Heavy duty – Compact size.
  • Full ball bearing design supports all radial and thrust loads at speeds up to 10,000 rpm.
  • .0005 inch incremental depth adjustment.
  • Fail safe positive stop design insures accurate repeatability and eliminates any possibility of work piece damage.
  • Built-in felt dust shield eliminates composite/ graphite dust contamination of the radial ball bearings, significantly extending product life.
  • 1/4″ shaft travel
  • Improved thrust system, significantly increases the run time between adjustments and product life.
  • Left hand threaded hex lock ring eliminates any possibility of inadvertent resetting of primary adjustment.
  • Available with standard 1/4-28 and on request 6mm, internally threaded shafts.
  • 3/4″ diameter cutter capacity with standard “‘S” footpieces and 1″ cutter capacity with wide “W” footpieces.


ZEPHYR Microstop Countersink Cages, Countersink Cutters, and Accessories
